YENİ

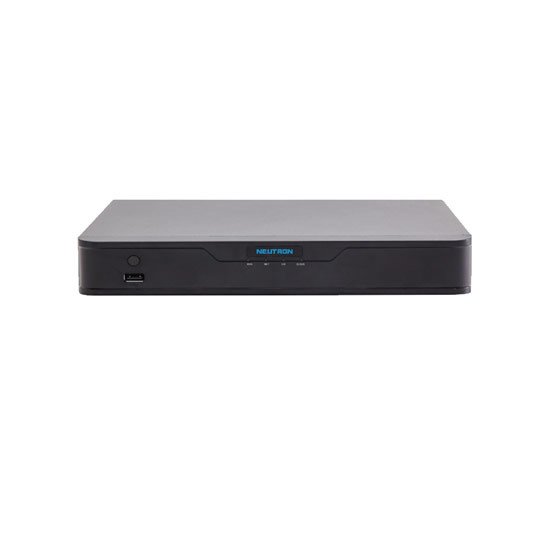

NVR302-16E2
NVR302-16E2
NVR302-16E2 Uzman Bayi Satış Ekibi, Profesyonel Teknik Destek Hizmeti ile DESS Elektronik'te en iyi fiyat garantisi ile...
Model
NVR302-16E2
Video/Audio Input
IP Video Input
16-ch
Two-way Audio Input
1-ch, RCA
Network
Incoming Bandwidth
320Mbps
Outgoing Bandwidth
320Mbps
Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Browser
IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI:
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output
1-ch, RCA
Audio Compression
G.711A, G.711U
Synchronous Playback
16-ch
Live View Display
1/4/6/8/9/16
Corridor Mode Screen
3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot
16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format
Ultra 265, H.265, H.264
Live View/Playback
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability
1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 16 x 720P@30
Hard Disk
SATA
2 SATA interfaces
Capacity
Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)
eSATA
NA
Disk Group
Support
Smart
VCA Detection by Camera
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search
Behavior Search, Vehicle Search
People Counting
People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera
Total 8-ch
General Alarm
General Alarm
Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface
Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0
RS232
NA
RS485
1
Alarm In
8-ch
Alarm Out
2-ch
General
Power Supply
12VDC/3.3A
Power Consumption: ≤ 12 W (without HDD)
Working Environment
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)
380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD)
≤1.8Kg (3.97lb)
Certification
Certification
CE, FCC, UL, RoHS, WEEE
CE
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC
Part15 Subpart B, ANSI C63.4
| Model | NVR302-16E2 | |||||
| Video/Audio Input | ||||||
| IP Video Input | 16-ch | |||||
| Two-way Audio Input | 1-ch, RCA | |||||
| Network | ||||||
| Incoming Bandwidth | 320Mbps | |||||
| Outgoing Bandwidth | 320Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS | |||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|||||
| Video/Audio Output | ||||||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Audio Output | 1-ch, RCA | |||||
| Audio Compression | G.711A, G.711U | |||||
| Synchronous Playback | 16-ch | |||||
| Live View Display | 1/4/6/8/9/16 | |||||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |||||
| Snapshot | ||||||
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution | |||||
| Decoding | ||||||
| Decoding Format | Ultra 265, H.265, H.264 | |||||
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Capability | 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 | |||||
| Hard Disk | ||||||
| SATA | 2 SATA interfaces | |||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
|||||
| eSATA | NA | |||||
| Disk Group | Support | |||||
| Smart | ||||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking | |||||
| VCA Search | Behavior Search, Vehicle Search | |||||
| People Counting | People Flow Counting, Crowd Density Monitoring | |||||
| Smart Intrusion Prevention (SIP), Vehicle Detection by Camera | Total 8-ch | |||||
| General Alarm | ||||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
| External Interface | ||||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |||||
| USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 | |||||
| RS232 | NA | |||||
| RS485 | 1 | |||||
| Alarm In | 8-ch | |||||
| Alarm Out | 2-ch | |||||
| General | ||||||
| Power Supply | 12VDC/3.3A Power Consumption: ≤ 12 W (without HDD) |
|||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |||||
| Dimensions (W×D×H) | 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1") | |||||
| Weight (without HDD) | ≤1.8Kg (3.97lb) | |||||
| Certification | ||||||
| Certification | CE, FCC, UL, RoHS, WEEE | |||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | |||||
| FCC | Part15 Subpart B, ANSI C63.4 | |||||
| Kanal Sayısı | : | 16 Kanal |
