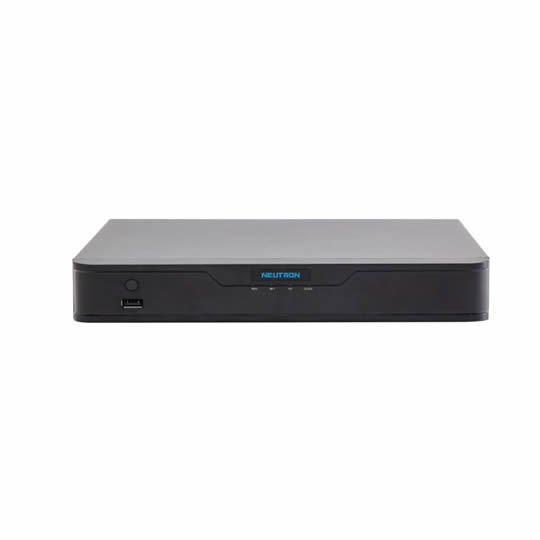

NVR301-04E2
NVR301-04E2
NVR301-04E2 Uzman Bayi Satış Ekibi, Profesyonel Teknik Destek Hizmeti ile DESS Elektronik'te en iyi fiyat garantisi ile...
Model
NVR301-04E2
NVR301-08E2
NVR301-16E2
Video/Audio Input
IP Video Input
4-ch
8-ch
16-ch
Two-way Audio Input
1-ch, RCA
Network
Incoming Bandwidth
64Mbps
Outgoing Bandwidth
64Mbps
Remote Users
128
Protocols
P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output
HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback
4-ch
8-ch
16-ch
Corridor Mode Screen
3/4
3/4/5/7/9
3/4/5/7/9/10/12/16
Decoding
Decoding format
Ultra 265/H.265/H.264
Liveview/Playback
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability
1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080p@30
1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4x 1080p@30, 8 x 720p@30
1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4x 1080p@30, 8 x 720p@30, 16 x D1@30
Hard Disk
SATA
1 SATA interface
Capacity
up to 6TB for each disk
External Interface
Network Interface
1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface
Rear panel: 1 x USB2.0, 1 x USB3.0
General
Power Supply
12V DC
Power Consumption: ≤9 W (without HDD)
Working Environment
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)
260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD)
1.3kg (2.87 lb)
| Model | NVR301-04E2 | NVR301-08E2 | NVR301-16E2 |
| Video/Audio Input | |||
| IP Video Input | 4-ch | 8-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 64Mbps | ||
| Outgoing Bandwidth | 64Mbps | ||
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Output | |||
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Decoding | |||
| Decoding format | Ultra 265/H.265/H.264 | ||
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080p@30 | 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4x 1080p@30, 8 x 720p@30 | 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4x 1080p@30, 8 x 720p@30, 16 x D1@30 |
| Hard Disk | |||
| SATA | 1 SATA interface | ||
| Capacity | up to 6TB for each disk | ||
| External Interface | |||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 | ||
| General | |||
| Power Supply | 12V DC Power Consumption: ≤9 W (without HDD) |
||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") | ||
| Weight (without HDD) | 1.3kg (2.87 lb) | ||
| Kanal Sayısı | : | 4 Kanal |
