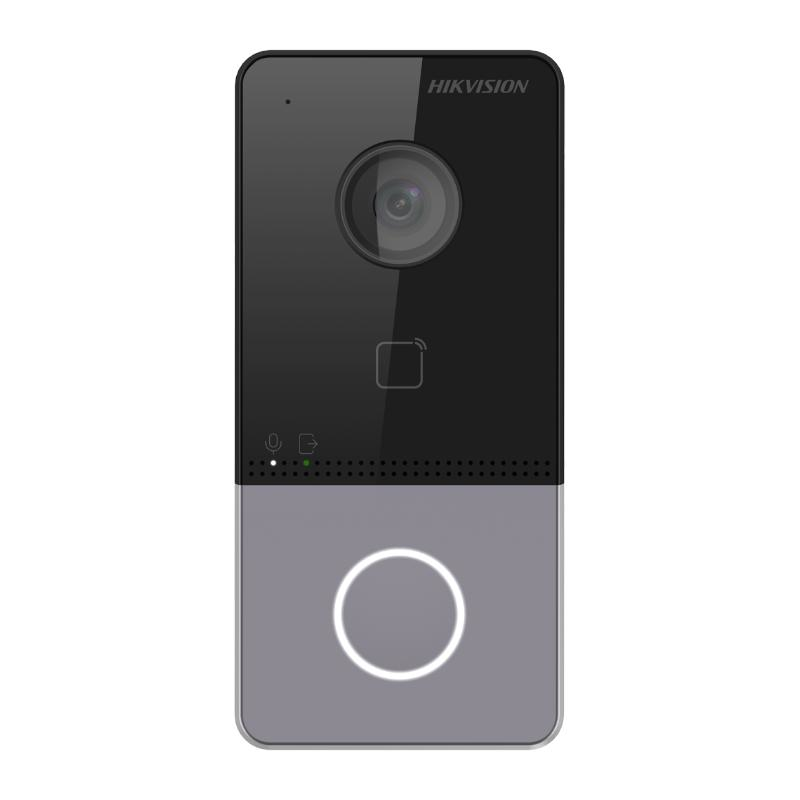

DS-KV6113-WPE1(C) Dokunmatik Dış Ünite
DS-KV6113-WPE1(C) Dokunmatik Dış Ünite
POE/Wifi Villa Door Station
- 2 MP camera with IR supplement
- One-touch button calling design for easier calls
- Built-in card reader module
- Standard PoE power supply
- IP65 protection level
- Convenient Hik-Connect APP Mobile Control
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM256 MB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens1
- Resolution
Main stream: 1920 × 1080p, 720p
Sub stream: 640 × 480p
- FOVHorizontal: 131° Vertical: 78°
- Wide dynamic range (WDR)Support 120 dB
- Supplement lightIR light, up to 3 m
- Video compression standardH.264
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Face capacity/
- Card capacity10000
- Network parameters
- Network protocolTCP/IP, RTSP
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- BluetoothNot supported.
- 3G/4G/
- Device interfaces
- Alarm input4
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit button1
- RS-4851
- USB/
- Wiegand/
- TF cardReserved
- Alarm output/
- Lock control1 relay, Max. 30 VDC 2 A
- Door contact input1
- General
- Button1 physical button
- InstallationSurface mounting
- Indicator2
- Weight
Net weight: 0.190 kg
Gross weight: 0.414 kg
- Protective levelIP65
- Working temperature-40 °C to 55 °C(-40 °F to 131 °F)
- Working humidity10% to 95% (no-condensing)
- Dimension (W × H × D)138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
- Battery/
- Application environmentOutdoor
- Power consumption＜ 10 W
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
- Power supply12 VDC,Standard PoE, af
