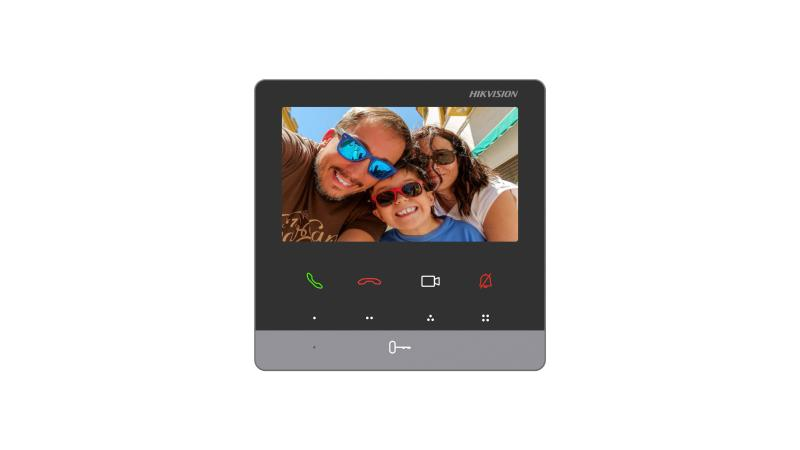

DS-KH6100-E1
KH6 Series IP-Based Indoor Station

• 4.3-inch colorful non-touch screen with resolution 480 × 272
• Standard PoE power supply without additional power adaptor
• Views live videos of door stations and linked cameras
• Convenient for users to customize functions according to their own usage habits by 4 custom touch buttons

• System parameters
• Operating systemLinux
• ROM8 MB
• RAM64 MB
• CPUEmbedded processor

• Display parameters
• Screen size4.3-inch
• Operation method9 touch buttons
• TypeColorful TFT
• Resolution480 × 272

• Video parameters
• Lens/
• Resolution/
• FOV/
• WDR/
• Video compression standard/
• Focal length/

• Audio parameters
• Audio compression standardG.711 U, G.711 A
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• Event capacity200
• Notice capacity200
• Linked indoor extensions capacity16

• Network parameters
• Communication protocolTCP/IP, SIP, RTSP
• Wi-Fi standard/
• Bluetooth version/
• 3G/4G standard/
• Zigbee/

• Device interfaces
• Alarm input/
• Network interface1 RJ-45 100 Mbps
• TAMPER/
• RS-485/
• USB/
• TF card/
• Alarm output/

• General
• Button9 touch buttons
• InstallationWall mounting, table mounting
• Indicator0
• Weight

  With package: 330.6 g (0.7 lbs)

  Without package: 191.8 g (0.4 lbs)

• Protective level/
• Working temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working humidity10% to 90%
• Dimensions120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
• Application environmentIndoor
• Power consumption≤ 4 W
• LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Mongolian, Hebrew, Kazakh, Uzbek
• Power supplyIEEE802.3af, Standard PoE,12 VDC
