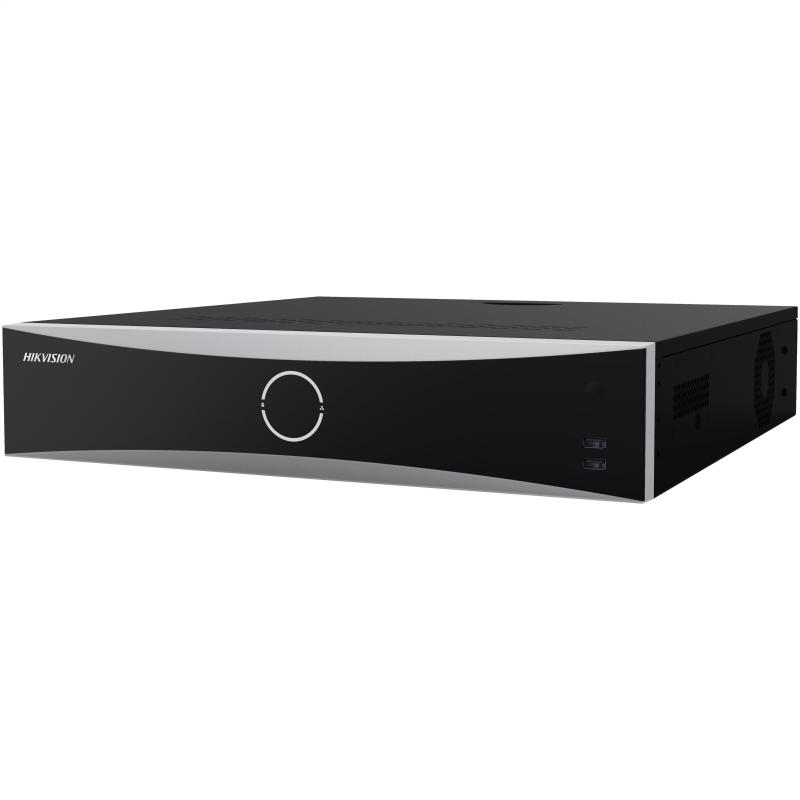

DS-8664NXI-I8/S 64 Kanal 4K AcuSense NVR
DS-8664NXI-I8/S
64-ch 2U 4K AcuSense NVR
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 4-ch facial recognition for video stream
- Up to 8-ch facial recognition for face picture
- Up to 64-ch IP camera inputs
- Up to 32-ch 1080p decoding capability
- Up to 8-ch IP speakers can be connected
- Intelligent Analytics
- AI by NVRFacial recognition, perimeter protection, motion detection 2.0
- AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
- Engine1, engine mode is adjustable
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
- Face Picture Comparison (Captured from Camera)8-ch
- Facial Detection and Analytics Performance4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Motion Detection 2.0
- By NVRAll channels for Hikvision cameras
- By CameraAll channels
- Perimeter Protection
- By NVR
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
Up to 12 rules in total
- By CameraAll channels
- ANPR
- By CameraAll channels
- Vehicle AttributesPlate number, license plate color, license plate type
- Plate AttributesVehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input64-ch
- Incoming Bandwidth384 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- HDMI 2 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA 1 Output1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA 2 Output1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
- Synchronous Playback16-ch
- Live View Window Division1/2/4/6/8/9/16/25/32/36/64
- Aux Port Window Division1/2/4/6/8/9/16/25/32/36
- Decoding Capability
Enable AI by NVR: 20-ch@1080p (30 fps)
Disable AI by NVR: 32-ch@1080p (30 fps)
- Dual-Stream RecordingSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Network
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Camera Access ProtocolONVIF(Version 2.5), RTSP
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare
- Auxiliary Interface
- Serial Interface1 RS-485 (full-duplex), 1 RS-232
- SATA8 SATA interfaces
- CapacityUp to 16 TB capacity for each disk
- eSATA1 eSATA interface
- Alarm In/Out16/9
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Chassis2U chassis
- Dimension (W × D × H)440 × 457 × 94 mm ( 17.4"× 18.0" × 3.7")
- Weight≤ 7.1 kg (without HDD, 15.7 lb.)
- Certification
- Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
| Kanal Sayısı | : | 64 Kanal |
