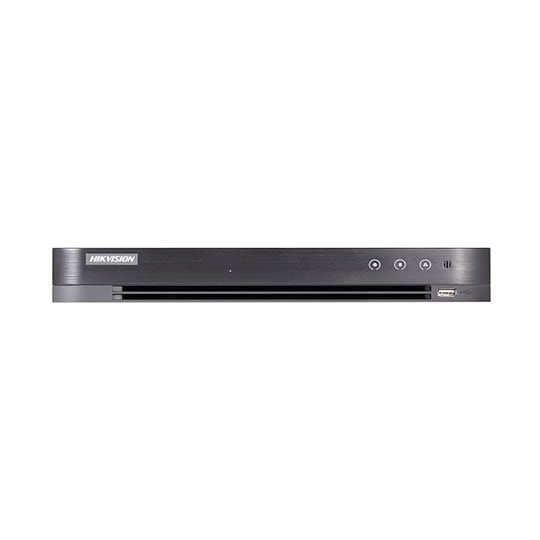

DS-7232HGHI-M2 32 Kanal Kayıt Cihazı
Marka
Stok Kodu
.0289
Garanti Süresi
24 Ay
DS-7232HGHI-M2
32-ch 720p 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 18-ch IP camera inputs (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Video and Audio
- IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
- Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
32-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback16-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps
For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps
For standard definition stream access: WD1/4CIF/VGA/CIF@25fps
Sub-stream: CIF/QVGA@15fps
- Video Bitrate32 Kbps to 4 Mbps
- Dual-streamNonsupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Remote Connection128
- Total Bandwidth128 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome
- Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- Serial InterfaceRS-485 (half-duplex)
- SATA2 SATA interface
- CapacityUp to 10 TB capacity for each disk
- USB Interface
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
- General
- Power Supply12 VDC, 3.33 A
- Consumption≤ 18 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
- Weight≤ 2.2 kg (without HDD, 4.9 lb.)
| Kanal Sayısı | : | 32 Kanal |
