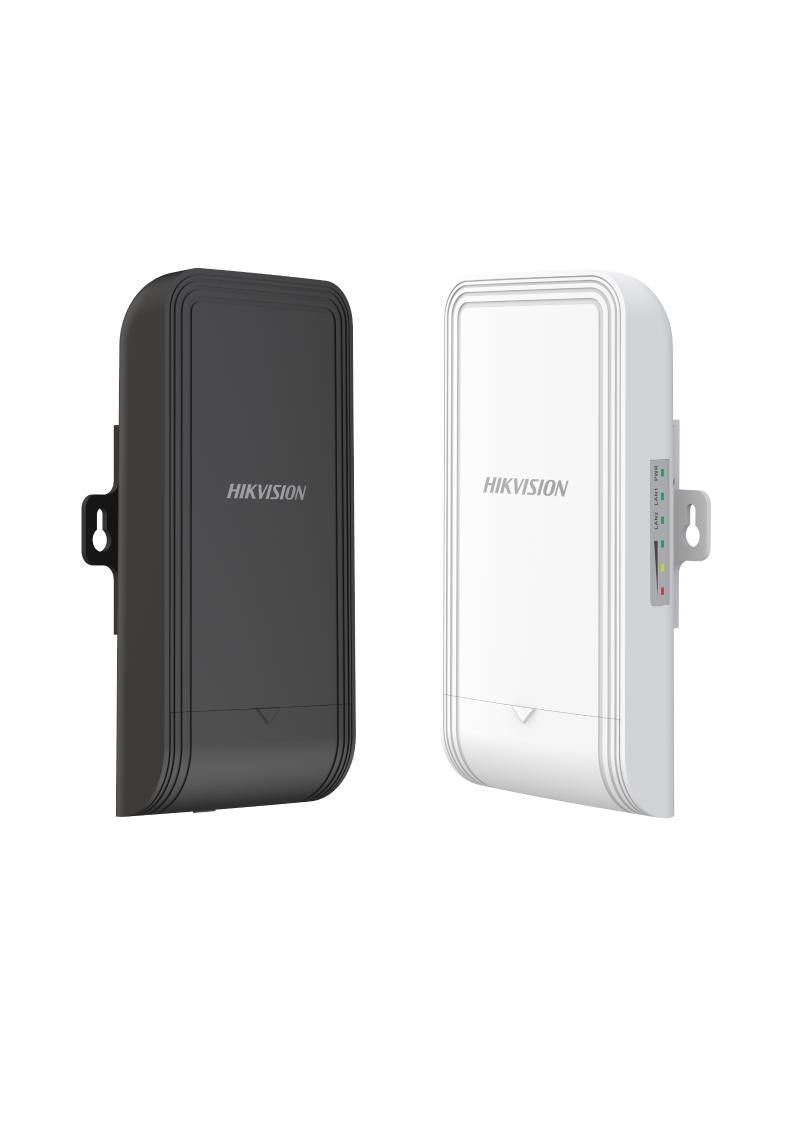

DS-3WF0EC-2NT 2.4Ghz 300Mbps 500m Asansör Access Point
DS-3WF0EC-2NT 2.4Ghz 300Mbps 500m Asansör Access Point
2.4Ghz 300Mbps 500m Elevator Wireless Bridge
- Up to 500 m wireless transmission distance
- 300 Mbps 802.11n wireless bridge
- Built-in 7dBi 2 x 2 MIMO antenna
- Visualized topology management
- Real-Time alarm push technology
- General
- Product Dimensions (W × H × D)90.8 mm × 57.87 mm × 187.87 mm (3.57'' × 2.27'' × 7.39'')
- Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
- Net Weight0.26 kg (0.57 lb) per device
- Gross Weight0.8 kg (1.76 lb)
- Packing ListWireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1
- Packing MethodPacking in pairs
- Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
- Working Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
- Storage Humidity5% to 95% (no condensation)
- Installation ModePole Mounting
- Ingress ProtectionIP55
- Power Consumption1.89 W for typical (1-ch 2MP IPC), Max. 3.7 W
- Wireless Parameter
- Max. Transmission Rate of Air Interface≤ 300 Mbps
- Wireless StandardIEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
- Working Frequency Band2400 MHz ~ 2483.5 MHz
- Antenna Gain7 dBi
- Antenna Angle(H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°
- Transmitting Power19±2 dBm (Note: Transmitting power may vary with local regulations.)
- Receiving Sensitivity-68 ± 2 dBm @HT40 MCS7
- Throughput RatePoint to point: Support up to 6-ch IPC (2MP) in Max. 0.5 KM distance and Max. 30 Mbps bandwidth
- Hardware Parameter
- Network Interface2 × 10/100 Mbps RJ45 ports
- LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
- ResetHardware resetting button
- Power Supply12-24 VDC Passive PoE
- Software Function
- Application FunctionIFM,IPM
- Channel Width10/20/40 MHz
- Channel SelectionAuto/manual selection
- Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
- Security ModeWPA2-PSK
- Security MechanismWireless network name hidden
- Management MethodWeb,iVMS-4200,HCP
- UpgradeWeb,iVMS-4200,HCP
- System LogSyslog,Control center information
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
