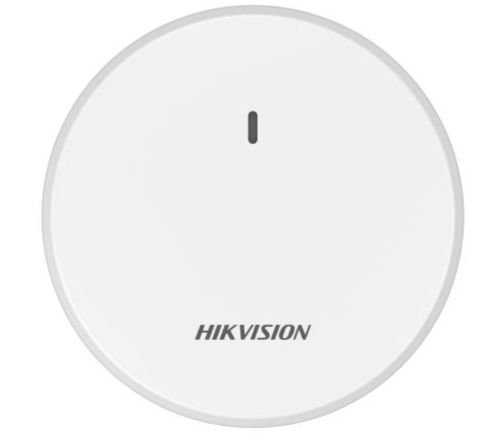

DS-3WAP622G-SI Wi-Fi 6 1800M İç Ortam Access Point

• 1 Gigabit Port with PoE Input
• 802.11ax Wi-Fi 6 1775 Mbps
• 100+ Concurrent User Connections
• Auto RF Optimization
• Support Intelligent Fast Roaming
• General
• Weight0.4 kg (0.88 lb)
• Installation ModeDesk-Mounted,Wall-Mounted,Ceiling Mounting
• Working Temperature0 °C to 40 °C (32 °F to 104 °F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 70 °C (-40 °F to 158 °F)
• Storage Humidity5% to 95% (no condensation)
• Product Dimensions (W × H × D)220 mm × 220 mm × 35 mm (8.66'' × 8.66'' × 1.37'')
• Packing List1800 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
• Power ConsumptionMax. 11.35 W
• WLAN Parameters
• Maximum Number of Clients256
• Recommended Number of Clients100
• Maximum Number of SSIDs8
• Working Frequency Bandradio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
• Wi-Fi StandardsWi-Fi 6
• Wi-Fi Speed2.4 G: 574 Mbps,5 G: 1201 Mbps
• Spatial Streams2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
• Channel Width2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/MHz
• Number of Antennas2.4GHz：2；5GHz：2
• Antenna TypeBuilt-in omnidirectional antennas
• Antenna Gain2.4 GHz: 3 dBi,5 GHz: 4 dBi
• Transmit Power20 dBm
• Modulation TechnologyOFDM：BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps; DSSS： DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps; MIMO-OFDM(11n)：MCS 0-15; MIMO-OFDM(11ac)： MCS 0-9; MIMO-OFDM(11ax)： MCS 0-11
• Software Specifications
• WLAN SecurityWAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support SSID and VLAN binding,Support 802.11i
• Management & MaintenanceCentralized AC management
• Version Upgradeupgrade on Web
• Hardware Specifications
• Interface1 × Gigabit RJ45 uplink port
• Power SupplyIEEE 802.3af/at POE,12 VDC 1.5 A
• LED IndicatorYellow/green/blue for different working states, flashing mode
• Reset ButtonHardware Resetting Button
• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
