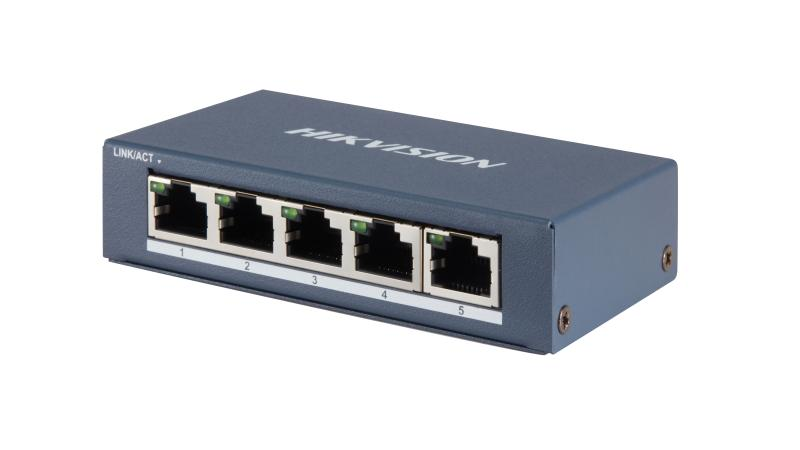

DS-3E0505-E
DS-3E0505-E
-
- 5 x 1000M Ethernet ports
- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x
- 1000M network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Fan-free design with high reliability
- General
- ShellMetal material, fan-free design
- Net Weight0.15 kg (0.3 lb)
- Gross Weight0.28 kg (0.61 lb)
- Dimensions (W × H × D)103 mm × 25.6 mm × 61.1 mm (4.1'' × 1.0'' × 2.4'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40˚C to 85˚C (–40˚F to 185˚F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply5 VDC, 1 A
- Installation ModeMetal material, fan-free design
- Max. Power Consumption/
- Power Consumption In Idle/
- Surge Protection/
- Network Parameters
- Limanlar5 × Gigabit RJ45 port
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE Standard/
- PoE Power Pin/
- PoE Port/
- Max. Port Power/
- PoE Power Budget/
- Dialing Function
- Long Range/
- Port Isolation/
- PoE Watchdog/
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
