DS-3E0318P-E(C)

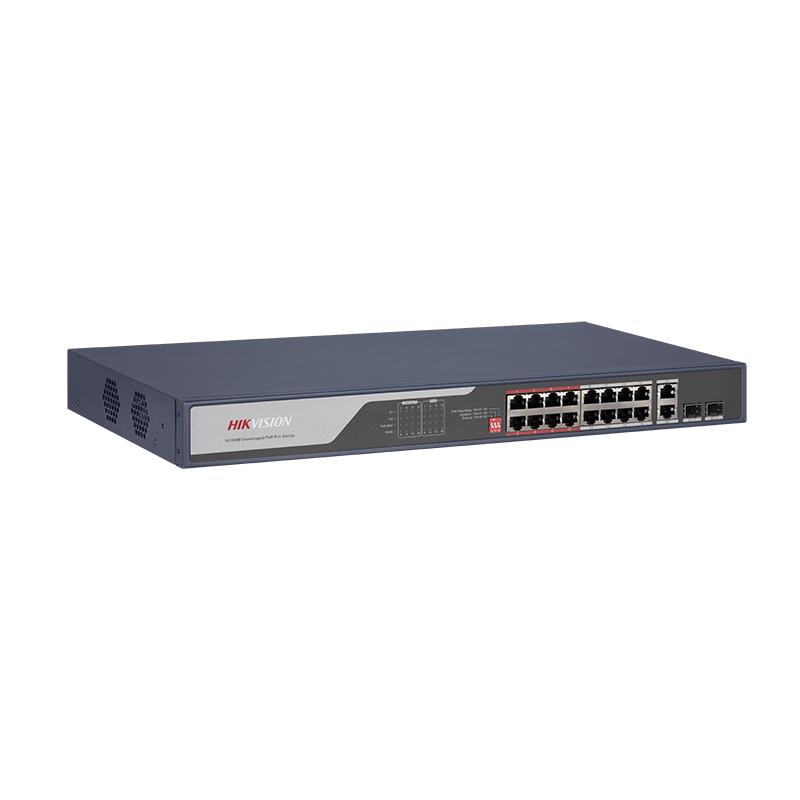

16 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE management.
• Up to 300 m long range PoE transmission.
• Port isolation to improve network security.
• 6 KV surge protection to improve reliability in harsh environment.
• PoE watchdog to auto-detect and restart cameras that do not respond.

• Network Parameters
• Ports16 × 10/100 Mbps PoE port,2 × Gigabit combo
• MAC Address Table16 K
• Switching Capacity7.20 Gbps
• Packet Forwarding Rate5.36 Mpps
• Internal Cache4 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 16
• Max. Port Power30 W
• PoE Power Budget225 W

• Dialing Function
• Long Range

  Ports 9 to 16: up to 300 m

  Long range performance may vary depend on camera model or cable condition.

• Port Isolation

  Ports 1 to 16: port isolation mode to improve network security.

  Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE WatchdogPorts 1  to 16: auto detect and restart the cameras that do not respond.

• General
• ShellMetal material
• Net Weight2.6 kg (5.73 lb)
• Gross Weight3.185 kg (7.02 lb)
• Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
• Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100~240 VAC, 50/60 Hz, Max. 4 A
• Max. Power Consumption250 W
• Power Consumption In Idle25 W
• Installation ModeRack (equipped with mounting ears)
• Surge Protection6 KV

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU)
