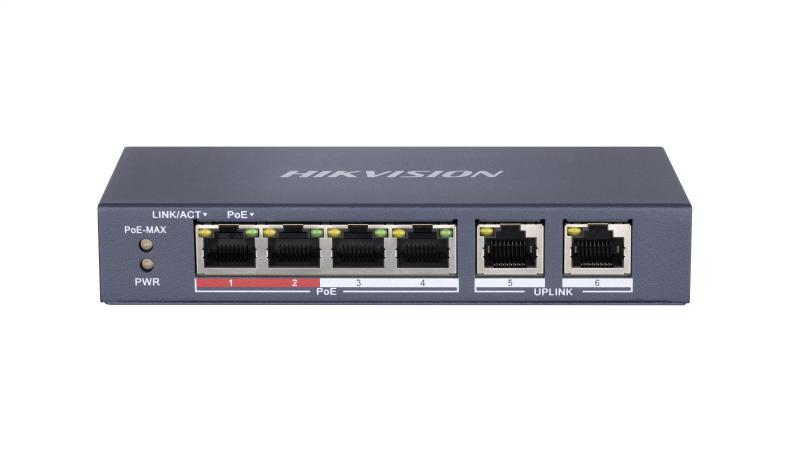

DS-3E0106P-E/M

4 Port Fast Ethernet Unmanaged POE Switch

• 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports.
• IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.

• General
• ShellMetal material
• Net Weight0.27 kg (0.60 lb)
• Gross Weight0.52 kg (1.15 lb)
• Dimensions (W × H × D)145 mm × 68.45 mm × 25.6 mm (5.71'' × 2.69'' × 1.01'')
• Operating Temperature–10 °C to 40 °C (14 °F to 104 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 0.8 A
• Installation ModeDesk-Mounted,Wall-Mounted
• Max. Power Consumption/
• Power Consumption In Idle/
• Surge Protection6 KV

• Network Parameters
• Limanlar4 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
• MAC Address Table2 K
• Switching Capacity1.2 Gbps
• Packet Forwarding Rate0.89 Mpps
• Internal Cache0.768 Kbits

• PoE Power Supply
• PoE StandardIEEE 802.3af;IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 4
• Max. Port Power30 W
• PoE Power Budget35 W

• Dialing Function
• Long Range

  Ports 1 to 4 : up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• Port Isolation/
• PoE Watchdog/

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry

  CE-RoHS (201165EU);

  WEEE (201219EU);

  Reach (Regulation (EC) No.19072006)
