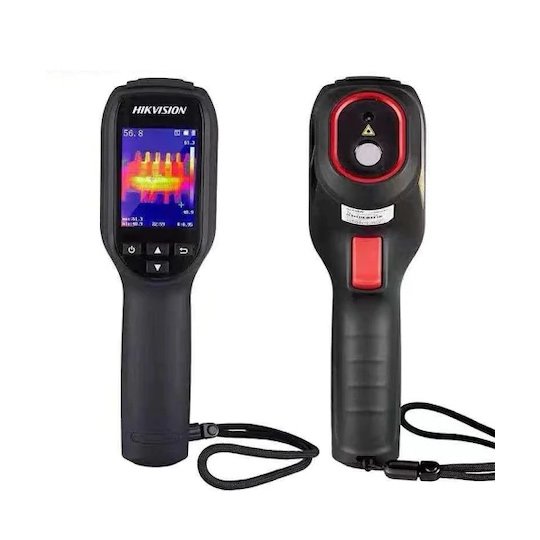

DS-2TP31B-3AUF Thermographic Handheld Camera   High sensitivity sensor with 160 x 120 resolution High quality 320 x 240 resolution 2.4'' LCD display Up to 4 palettes Wide temperature measurement range: -20 - 550° C High temperature measurement accuracy: Up to ±2° C, ±2% Long-distance laser light supplement for thermography targets Built-in rechargeable Li-ion battery Up to 8 hours continuous operation



• Thermal Module
• Image SensorUncooled Focal Plane Arrays
• Max. Resolution160 × 120
• NETD< 40mk (@ 25 °C,F#=1.0)
• Field Of View37.2° × 50 °
• ApertureF 1.1
• Pixel Pitch17μm
• Focal Length3.1 mm
• IFOV (Mrad)5.48 mrad
• Response Waveband8μm to 14μm

• Image Display
• Monitor320 × 240 resolution 2.4’ LCD display
• PalettesBlack hot, White hot, Rainbow, Ironbow

• Thermography
• Rules3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature
• Thermometry Range-20 °C to 550 °C (-4 °F to 1022 °F)
• Thermometry AccuracyMax (±2 °C, ±2%)

• Battery
• Battery TypeRechargeable Lithium Battery
• Battery Operating Time8 hours continuous running

• Functions
• Laser LightSupport (Point to the thermography target)
• StorageReplaceable memory card (default 8G, support up to 128G storage)
• PhotoThermal image
• VideoN/A
• LanguageEnglish

• General
• Power3.7 V DC/0.4 A
• Power ConsumptionLess than 1.2 W
• WeightApprox. less than 350 g (0.77 lb)
• Hardware Interfacemicro USB
• Protection LevelIP54
• Drop Test Height2 m (6.56 feet)
• Dimension196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)
• AccessoryPower Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
