DS-2DE2C200IWG-K/4G/C05S10 2 MP 4G PAN TILT KAMERA

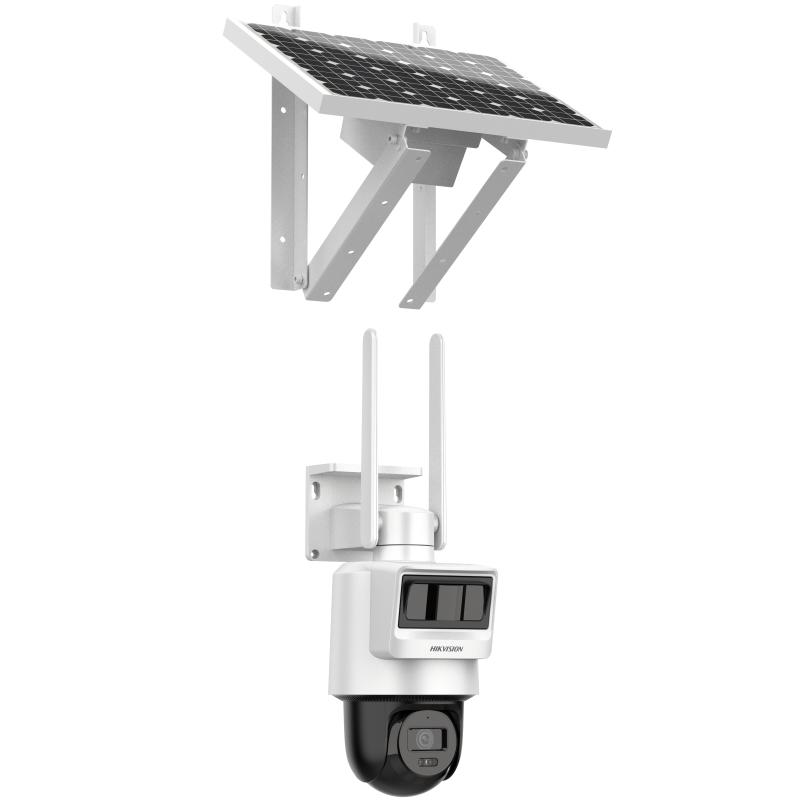

2MP Pro Solar-powered Security PT Camera Setup
- High quality imaging with 2 MP resolution
- Dual transducers – PIR and Radar work together for higher detection accuracy
- Support 4G LTE data transmission
- Built-in microphone and built-in speaker for two-way audio and audio alarm
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP66)
- Support manual adjustment of the radar angle: 0°, 10°, and 20°
- Camera
- Image Sensor1/2.9" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- PTZ
- Movement Range (Pan)0° to 340°
- Movement Range (Tilt)0° to 80°
- Pan SpeedUp to 25°/s
- Tilt SpeedUp to 25°/s
- DORI
- DORI
2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 12.5 fps ( 1920 × 1080, 1280 × 720)
60 Hz: 15 fps ( 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Audio CompressionG.722.1/G.711/MP2L2/PCM/G.726/AAC-LC
- Audio Bit Rate16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)
- Network
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
- Simultaneous Live ViewUp to 6 channels
- ProtocolsTCP/IP, DHCP, IPv4
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientHik-Connect,HikCentral Professional, Hik-Partner Pro
- Web BrowserLocal service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+
- Mobile Communication
- StandardLTE-FDD,LTE-TDD,UMTS
- Frequency
EU:
LTE-FDD: B1/3/5/7/8/20/28
IN:
LTE-FDD: B1/3/5/8
LTE-TDD: B34/38/39/40/41
LA:
LTE-FDD: B2/3/4/5/7/8/28/66
NA:
LTE-FDD: B2/4/5/12/13/17/66/71
UMTS: B2/4/5
- Uplink and Downlink Data Rate
EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps
IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps
LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps
NA: uplink: 50 Mbps, downlink: 150 Mbps
- SIM Card TypeNano SIM
- Image
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Transducer
- Transducer TypePIR + Radar
- Detection AngleHorizontal: 80°, vertical: 30°
- Detection RangeUp to 12 m
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone1 built-in microphone
- Built-in Speaker1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
- General
- Power
Power Consumption and Current:
Typical power scenarios: 1.85 W (4G working)
Standby scenarios: 80 mW
Max. Power consumption: 7 W
Power Supply: 12 VDC ± 25%
*For debugging only
10 W (deviation: ± 5%) Solar panels
Power Interface:
Power supply interface: four-core aviation connector
Extened solar panel: four-core aviation connector
- Dimension133.1 mm × 177.64 mm × 382.44mm/412.44 mm (5.24" × 6.99" × 15.06+"/16.24")
- MaterialPlastic
- Package Dimension375 mm × 305 mm × 398 mm (14.76" × 12.01" × 15.67")
- WeightApprox. 850 g (1.87 lb.)
- With Package WeightApprox. 4700 g (10.34 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
- Battery
- Battery TypeTernary Lithium
- Cycle Lifetime
27 hours (1.85 W)
Full charge battery runtime without solar input.
- Battery Voltage9 V to 12.6 V
- Capacity50.76 Wh
- Max. Charging Voltage12.6 V
- Max. Output Voltage12.6 V
- Operating Temperature
Charging: 0 °C to 45 °C (32 °F to 113 °F)
Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
- Battery LifeMore than 800 cycles
- Approval
- RF
CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
*CE certification is only for the device sold in the European region.
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
| Kasa Tipi | : | PTZ |
| Çözünürlük | : | 2 Megapiksel |
| Lens | : | 2,8 mm |
