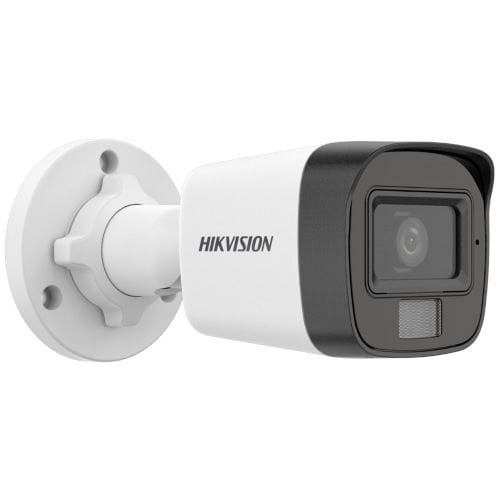

DS-2CE16D0T-LPFS

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°

  3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°

• Lens MountM12

• Illuminator
• Supplement Light TypeWhite Light;IR
• Supplement Light Range

  IR : Up to 25 m

  White Light : Up to 20 m

• Image
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080P @ 30 fps, 1080P @ 25 fps

  AHD: 1080P @ 30 fps, 1080P @ 25 fps

  CVI: 1080P @ 30 fps, 1080P @ 25 fps

  CVBS: PAL/NTSC

• Day/Night ModeIR/White Light
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementYes
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialPlastic
• Dimension138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")
• WeightApprox. 155 g (0.34 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 3.3 W

• Approval
• ProtectionIP67
