DS-2CE16D0T-EXLPF

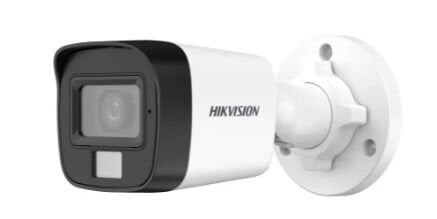

2MP Smart Hybrid Light Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• Fixed focal lens, 2.8 and 3.6 mm optional
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
• Signal SystemPAL/NTSC
• Lens
• Lens TypeFixed focal lens, 2.8 and 3.6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°

• Lens MountM12
• Illuminator
• Supplement Light TypeWhite Light;IR
• Supplement Light Range

  IR : Up to 20 m

  White Light : Up to 20 m

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 1080p @ 30 fps, 1080p @ 25 fps

  CVI: 1080p @ 30 fps, 1080p @ 25 fps

  CVBS: PAL/NTSC

• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialPlastic
• DimensionØ70 mm × 138.8 mm (Ø2.76" x 5.46")
• WeightMax. 265 g (0.58 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ± 25%, Max. 2.9 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Approval
• ProtectionIP67
