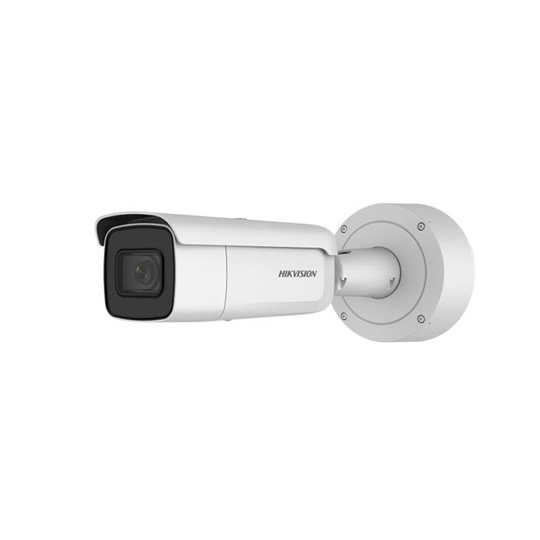

DS-2CD2626G2-IZS

2 MP AcuSense Varifocal Bullet Network Camera

• High quality imaging with 2 MP resolution
• Motorized Varifocal lens for easy installation and monitoring
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP66) and vandal-resistant (IK10)
• Kamera
• Image Sensor1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Max. Resolution1920 × 1080
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
• Lens
• Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 113° to 31°, vertical FOV 58° to 18°, diagonal FOV 138° to 36°
• Lens MountØ14
• Iris TypeFixed
• ApertureF1.4
• Depth Of Field0.5 m to ∞
• DORI
• DORI

  2.8 to 12 mm:

  Wide: D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m

  Tele: D: 137.9 m, O: 54.7m, R: 27.6 m, I: 13.8m

• Illuminator
• Supplement Light TypeIR
• IR Wavelength850 nm
• Smart Supplement LightYes
• Supplement Light RangeUp to 60 m
• Video
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

  *Third stream is supported under certain settings.

• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Bit Rate32 Kbps to 8 Mbps
• Bit Rate ControlCBR,VBR
• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Environment Noise FilteringYes
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• Smooth StreamingYes
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10+, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy MaskYes
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
• Built-In MicrophoneNA
• Built-In SpeakerNA
• Audio

  1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

• Alarm1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),

  Scene change detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,trigger alarm output,audible warning,send email
• Deep Learning Function
• Face CaptureYes
• General
• Power

  12 VDC ± 25%, 1.08 A, max. 13 W,two-core terminal block,reverse polarity protection,

  PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W

• DimensionØ144.1 mm × 345.7 mm (Ø5.7" × 13.6")
• Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• Approx. 1450 g (3.2 lb.)
• With Package WeightApprox. 2521 g (5.6 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat,anti-flicker,mirror,flash log,password reset via email,privacy mask
• Flashing LightNo
• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP66: IEC 60529-2013||IK10: IEC 62262:2002
