DS-2CD1343G0-IUF
DS-2CD1343G0-IUF
DS-2CD1343G0-IUF uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...
 |
DS-2CD1343G0-IUF

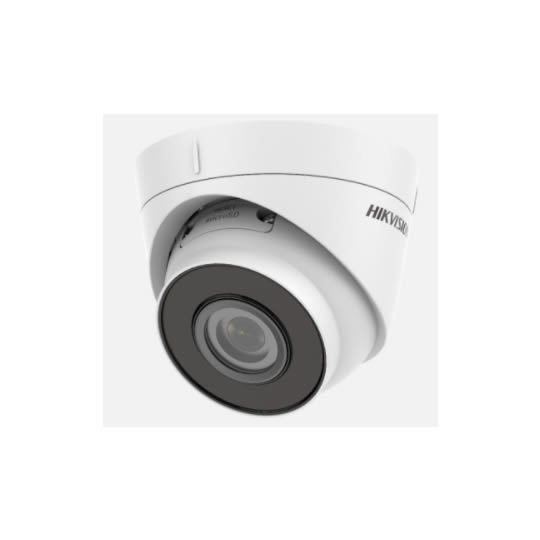

4 MP CMOS Network Dome Kamera
|
- Camera
- Image Sensor1/3" progressive scan CMOS
- Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Day &NightIR cut filter
- Wide Dynamic Range120 dB
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- DNR3D DNR
- Lens
- Lens2.8 mm, 4 mm
- ApertureF2.0
- FocusFixed
- FOV
2.8 mm, horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91°
- Lens MountM12
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution2560 × 1440
- Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Smart Feature-Set
- Region Of Interest1 fixed region for main stream
- Image
- Image EnhancementHLC, BLC, 3D DNR
- Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto/Schedule/Day/Night
- Main Stream Max. Frame Rate
50Hz: 20 fps (2560 × 1440)
25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2560 × 1440)
30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-Stream Max. Frame Rate
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users, 3 levels: Administrator, Operator and User
- ClientiVMS-4200, Hik-Connect, iVMS-5200
- Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
- Alarm TriggerMotion detection, video tampering, exception (network disconnected, IP address conflict, illegal login, HDD error)
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Built-In Microphone-U: Yes
- Hardware Reset-F: Yes
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- General
- Firmware VersionV5.5.111
- Web Client LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, Class 3)
- MaterialMetal & Plastic
- Dimensions
Camera: Ø110 mm × 85.3 mm (Ø4.3" × 3.4\")
With package: 150 mm × 150 mm × 141 mm (5.9 × 5.9\" × 5.6\")"
-
Camera: approx. 320 g (0.7 lb.)
With package: approx. 556 g (1.2 lb.)
- Power Consumption And Current
12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
- Interface ProtectionIP67 (IEC 60529-2013), TVS 2000V lightning protection, surge protection and voltage transient protection
| Kasa Tipi | : | Dome |
| Çözünürlük | : | 4 Megapiksel |
| Lens | : | 2,8 mm |
| Wi-Fi | : | Yok |
