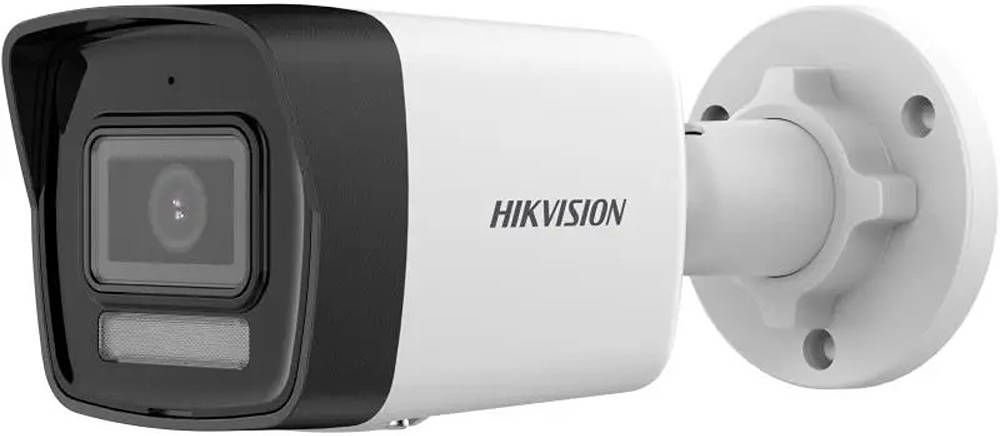

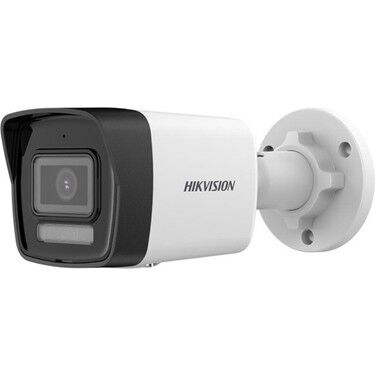

DS-2CD1043G2-LIUF

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

  4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

• DORI
• DORI

  2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

  4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz:

  20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (2560 × 1440)

  24 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region Of Interest (ROI)1 fixed region for main stream

• Audio
• Audio TypeMono sound
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Network
• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Built-In MicrophoneYes
• Reset Key-F: Yes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

• General
• Power

  12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 6.5 W

• MaterialMetal & Plastic
• Dimension170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
• Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• WeightApprox. 270 g (0.6 lb.)
• With Package WeightApprox. 481 g (1.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006
