DS-2CD1023G0-IUF
DS-2CD1023G0-IUF
DS-2CD1023G0-IUF uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...
 |

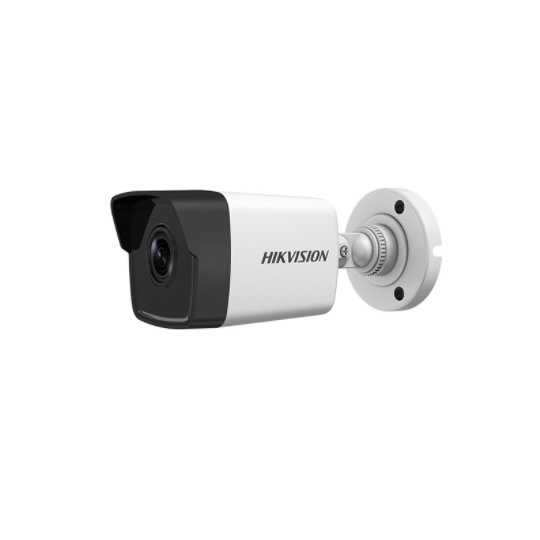

DS-2CD1023G0E-IF
2 MP CMOS Network Bullet Kamera (Dahili Ses)
|
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Day &NightIR cut filter
- Wide Dynamic RangeDigital WDR
- Lens
- LensFixed lens, 4 mm
- Auto-IrisNo
- ApertureF2.0
- FocusNo
- FOV2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° ;4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
- Lens MountM12
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution1920 × 1080
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Smart Feature-Set
- Region Of Interest1 fixed region for main stream and sub-stream
- Image
- Image EnhancementBLC, 3D DNR
- Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
- Day/Night SwitchDay/Night/Auto/Schedule
- Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator, and User
- ClientiVMS-4200, Hik-Connect, iVMS-5200
- Alarm TriggerMotion detection, video tampering alarm, illegal login
- Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
- Interface
- Communication Interface1 RJ45 self-adaptive Ethernet port
- General
- Firmware Version5.5.83
- General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
- MaterialFront cover: metal, back cover : plastic
- DimensionsCamera: 67.8 × 66.2 × 177.6 mm (2.7" × 2.6" × 7") ;With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
- Camera: Approx. 270 g (0.6 lb.) ;With package: Approx. 470 g (1 lb.)
- Power Consumption And Current
12 VDC: 0.4 A, max. 5 W
PoE: (802.3af，36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
- Interface ProtectionIngress protection: IP66 (IEC 60529-2013)
| Kasa Tipi | : | Bullet |
| Çözünürlük | : | 2 Megapiksel |
| Lens | : | 2,8 mm |
| Wi-Fi | : | Yok |
