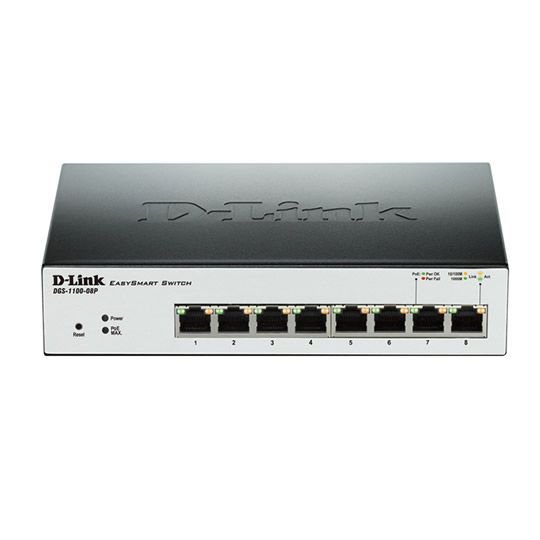

DGS-1100-08P

Kategori
Marka
Stok Kodu
.1611
Garanti Süresi
24 Ay

DGS-1100-08P

DGS-1100-08P uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...


Genel Özellikler:

Fiziksel Özellikler
Size
Table size

Number of ports
8-port 10/100/1000BaseT PoE

Function on the ports
• IEEE 802.3
• IEEE 802.3u
• Supports full / half duplex (for half-duplex 10/100 Mbit / s, full duplex 1000 Mbit / s)
• Auto-negotiation
• Auto detection of MDI / MDIX
• IEEE 802.3x flow control in full duplex mode
• IEEE 802.3az

Performance
• Bandwidth switch 16 Gbit / c
• Maximum speed packet forwarding: 11.9 Mpps
• MAC-Address Table: 8K entries per device
• Packet Buffer: 2 Mbps
• Flash-Memory: 2 MB

Standard PoE
802.3af

Ports with PoE
• Ports 1-8: 15.4W
• Max. 15.4W on 4 ports 10/100/1000 Mbit / s
• Max. 8 W at 8 ports 10/100/1000 Mb / s

PoE power budget
64 W

Indicators
• Power (per device)
• Max. PoE
• Link / Activity / Speed ​​(per port)

Software Functions
VLAN
• Port-based
• 802.1Q tagged VLAN
• Surveillance VLAN
• Management VLAN
• Group VLAN
  - Max. 32 static VLAN
  - Max. 4094 VIDs

Layer 2 features
• MAC Address Table: 8K
• Flow Control
  - 802.3x Flow Control
  - HOL Blocking Prevention
• Jumbo-frames up to 9216 bytes
• IGMP Snooping
  - IGMP v1/v2 Snooping
  - Supports up to 32 IGMP-groups
• Link Aggregation: Group 1, 2-4 ports per group
• The Loopback Detection
• Diagnostic cable
• Port Mirroring
  - One-to-One
• Statistics
  - Tx Ok
  - Tx Error
  - Rx Ok
  - Rx Error

Quality of service (QoS)
• 802.1p
• 4 queues per port
• Mechanisms queuing
  - Strict
  - Weighted Round Robin (WRR)
• Bandwidth Management
  - Port-based (Ingress / Egress, selected from a list with a minimum of 8 kbit / s)

Security
• Static MAC-address: up to 32 entries
• Protection from the broadcast / multicast / unicast storm

Management
• Web-interface GUI (Supports IPv4)
• The SmartConsole

Technology D-Link Green
• Lower power consumption, depending on:
  - Connection status
  - Cable lengths
• IEEE 802.3az Energy Efficient Ethernet
• RoHS 6

List of RFC standards
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 951 BootP-client
• RFC 1542 BootP / DHCP client
• RFC 1945 HTTP/1.0
• RFC 2647 802.1p


Fiziksel Özellikler

Power consumption
• Mode Standby: 2,0 W
• Maximum: 78,8 W

Power Input
External universal power supply 100 to 240 VAC, 50/60 Hz

MTBF (hours)
708.219 h

Noise level
0 dB

Heat release
268,87 BTU / hour

Weight
0,706 kg

Measurements
190 x 120 x 38 mm

Fans
no

Operating temperature
From 0 to 50 ° C.

Storage temperature
-10 To 70 ° C

Operating Humidity
From 10 to 95% (non-condensing)

Electromagnetic compatibility
FCC Class A, CE Class A, VCCI Class A, ICES-003, C-Tick

Security
cUL, CE LVD
