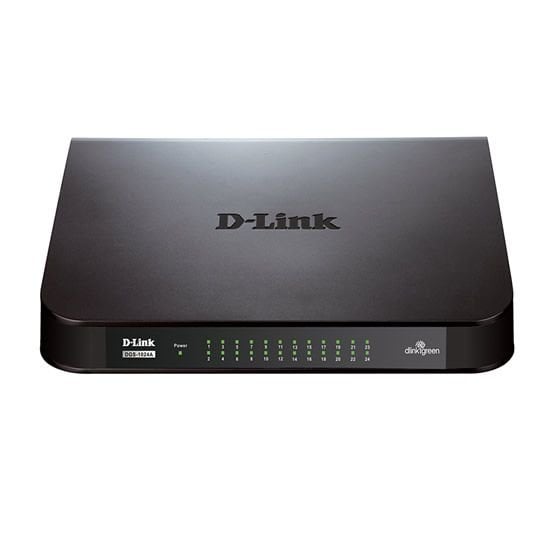

DGS-1024A
DGS-1024A
DGS-1024A uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...
Genel Özellikler:
Fiziksel Özellikler
Number of Ports
24-port 10/100/1000 Gigabit Ethernet
Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• Auto-negotiation of ANSI / IEEE 802.3 NWay
• IEEE 802.3x Flow Control
Data rate
• Ethernet:
- 10 Mbit / s (half duplex)
- 20 Mbit / s (full duplex)
• Fast Ethernet:
- 100 Mbit / s (half duplex)
- 200 Mb / s (full duplex)
• Gigabit Ethernet:
- 2000 Mbit / s (full duplex)
Network Cables
• 10BASE-T:
- UTP Cat. 3, 4, 5/5e (max. 100 m)
- EIA/TIA-586 100-ohm STP (max. 100 m)
• 100BASE-TX, 1000BASE-T:
- UTP Cat. 5/5e (max. 100 m)
- EIA/TIA-568 100-ohm STP (max. 100 m)
Functions D-Link Green
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Reduce energy consumption by determining the connection status and cable length
• Compliance with the RoHS Directive
LAN function
• Method «Back pressure» (half-duplex)
• Automatic polarity of MDI / MDIX
• Wired Data Transfer
• Transmission mode Store-and-forward
• Table of MAC-addresses: 8K
• Buffer RAM: 3,5 MB
• Jumbo-frames: 9216 bytes
• Switch fabric: 48 Gbit / s
Speed Packet
• 10M: 14.880 pps
• 100M: 148.800 packets per second
• 1000M: 1.488.000 pps
Indicators
• Power
• 24 Link / Activity / Speed (one per port)
Fiziksel Özellikler
Nutrition
12 V, 1.5 A, the external power supply
Power consumption
• Power on (Standby): Power Input: 6.86 W ac
• Max.: The input power 14.17 watts of AC power
Heat release
• Power on (Standby): 23,41 BTU / hour
• Max.: 48,35 BTU / hour
MTBF
401.515 hours
Measurements
257 x 178 x 46 mm
Weight
0.76 kg
Operating temperature
From 0 to 40 C
Storage temperature
-10 To 70 C
Humidity
From 5% to 90% (non-condensing)
Certifications
• FCC Class A
• ICES-003 Class A
• CE Class A
• VCCI Class A
• C-Tick Class A
• uCL
• CB
