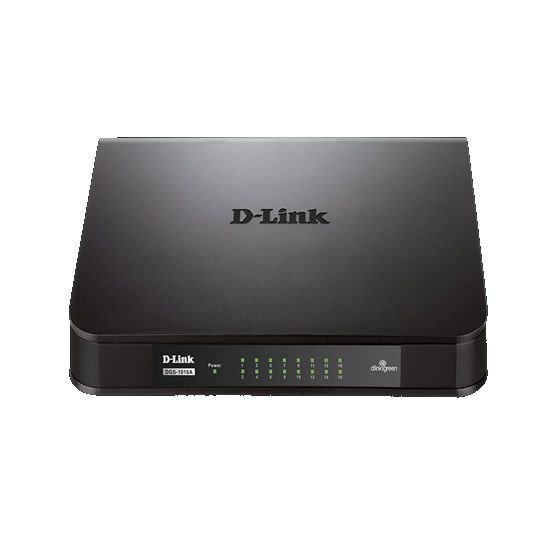

DGS-1016A

DGS-1016A uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...

 YENİ ÜYELİK - BAYİLİK   TALEP FORMU



Number of Ports

• Sixteen 10/100/1000 Gigabit ports

Switching Capacity

• 32Gbps

Standards

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy Efficient Ethernet (EEE)

Data Transfer Rates

Ethernet:

• 10 Mbps (half duplex)
• 20 Mbps (full duplex)

Fast Ethernet:

• 100 Mbps (half duplex)
• 200 Mbps (full duplex)

Gigabit Ethernet:

• 2000 Mbps (full duplex)

Network Cables

10BASE-T:

• UTP CAT 3, 4, 5/5e (100 m max)
• EIA/TIA-586 100-ohm STP (100 m max)

100BASE-TX, 1000BASE-T

• UTP CAT 5/5e (100m max)
• EIA/TIA-568 100-ohm STP (100 m max)

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

LED Indicators

• Per port: Link/Activity/Speed
• Per device: Power

Transmission Method

• Store-and-forward

MAC Address Table

• 8k

MAC Address Learning

• Automatic update

MAC Address Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• 2Mbits

Jumbo Frames

• 9216 Bytes

D-Link Green

• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Link status detection power saving
• Cable length detection power saving
• RoHS Compliance

Power Inputs

• Switching 12V/1A level V power adapter

Power Consumption

• Power On (Standby): AC input: 3.12 Watts
• Power Max.: AC input: 7.89 Watts

Heat Dissipation

• Power On (Standby): AC input: 10.65 BTU/h
• Power Max.: AC input: 26.92 BTU/h

MTBF

• 527,308 hours

Operating Temperature

• 32 to 104 °F (0 to 40 °C)

Storage Temperature

• 14 to 158 °F (-10 to 70 °C)

Operating Humidity

• 10% to 90% non-condensing

Storage Humidity

• 5% to 90% non-condensing

Dimensions

• 9.1 x 6.2 x 1.8 inches (231 x 158 x 46 mm)

Weight

• 1.28 lbs. (580g)

Certifications

• FCC Class A
• ICES-003 Class A
• CE Class A
• uCL
• CB
• VCCI Class A
• C-Tick Class A

Warranty

• Limited Lifetime
