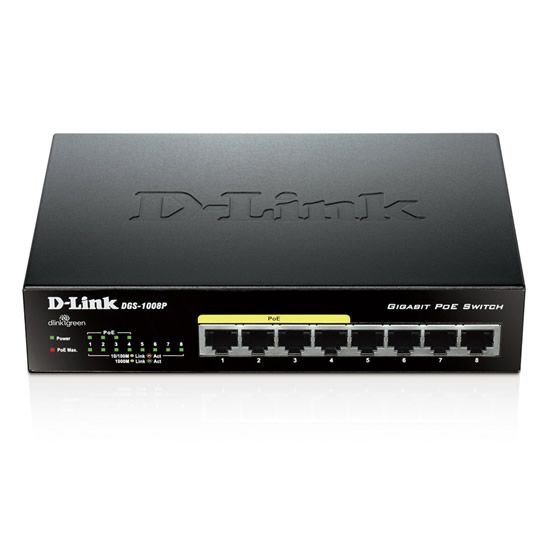

DGS-1008P
DGS-1008P
DGS-1008P uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...
Genel Özellikler:
Fiziksel Özellikler
Genel Özellikler:
• 8-port 10/100/1000 Mbit / s
• Auto MDI / MDIX on all ports
• Switching Method: Store-and-forward
• Ethernet / Fast Ethernet: Full duplex / half duplex
• IEEE 802.3x Flow Control
• The Plug-and-play
• Built-in D-Link Green
• Compliance with the RoHS Directive
• Supports IEEE 802.1p QoS (4 queues, Strict Mode)
• Diagnostic cable
• Jumbo-Frames 9720 KB
Switching matrix
16 Gbit / s
Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-TX Gigabit Ethernet
• ANSI / IEEE 802.3 NWay auto-negotiation of speed and mode
• Flow Control IEEE 802.3h
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet
PoE function
• IEEE 802.3af
• The power supply to the device: up to 15.4 W
• The maximum power budget: 52 W
• The number of ports of PoE / PoE power per port: 4 (Port 1-4) / 13 W
Data rate
• Ethernet:
- 10 Mbit / s (half duplex)
- 20 Mbit / s (full duplex)
• Fast Ethernet:
- 100 Mbit / s (half duplex)
- 200 Mb / s (full duplex)
• Gigabit Ethernet:
- 2000 Mbit / s (full duplex)
Topology
Star
Interfaces transmission medium
Automatic detection of MDI / MDIX on all ports
Network Cables
• 10BASE-T:
- UTP Cat. 3/4/5/5e (100m max.)
- EIA/TIA-586 100-ohm STP (100m max.)
• 100BASE-TX, 1000BASE-T:
- UTP Cat. 5/5e (100m max.)
- EIA/TIA-586 100-ohm STP (100m max.)
Indicators
• In the Port:
- Link / Activity / Speed / PoE Status
• On the device:
- Power / PoE Max
Switching Method
Store-and-forward
Table MAC-addresses
4K recording device
Study of MAC-addresses
Automatic updates
Speed Packet Filtering / Forwarding
• Ethernet: 14,880 packets per second. the port
• Fast Ethernet: 148,800 packets per second. the port
• Gigabit Ethernet: 1488000 packets per second. the port
Buffer RAM
192 Kbytes to the device
Fiziksel Özellikler
Power consumption
• Power on. (Standby) / Max. (PoE off.): Power Input: 2.0 W (AC)
• Max. (PoE incl.): Power Input: 63.2 W (AC)
The power adapter
• Power Input: 100 ~ 240V AC, 50/60Hz
• Power Output: 48 V DC, 1.25 A (60 W)
Operating temperature
• Device: from 0 º to 50 º C
• External power supply: from 0 º to 40 º C
Storage temperature
From -40 ˚ to 70 ˚ C
Operating Humidity
From 0% to 95%, non-condensing
Humidity
From 0% to 95%, non-condensing
Measurements
190 x 120 x 38 mm
Weight
0.73 kg
Certifications
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL
• LVD
