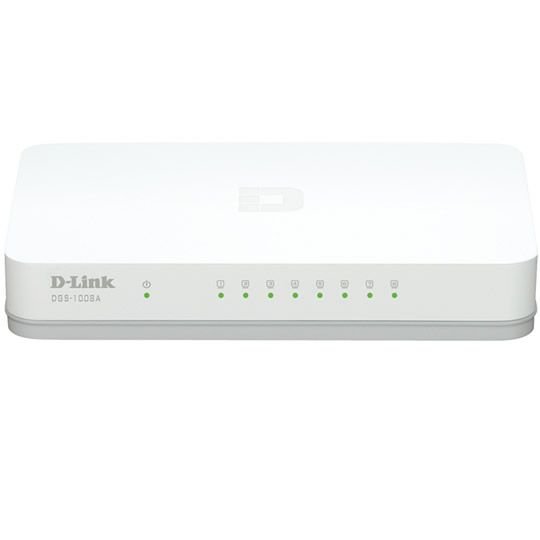

DGS-1008A
DGS-1008A
DGS-1008A uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...
Genel Özellikler:
Fiziksel Özellikler
Interfaces
8 Gigabit ports 10/100/1000 Base-T
Supported Features
• Green Ethernet
• Switch fabric: 16 Gbit / s
• Automatic polarity of MDI / MDIX on all ports
• Switching Method: store-and-forward
• Ethernet / Fast Ethernet: full duplex / half duplex
• IEEE 802.3x Flow Control
• Jumbo-frames 9216 bytes
• Supports IEEE 802.1p QoS (4 queues, Strict Mode)
• Cable Diagnostics
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• ANSI / IEEE 802.3 NWay auto-negotiation of speed and mode
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
CSMA / CD
Data rate
• Ethernet:
10 Mbit / s (half duplex)
20 Mbit / s (full duplex)
• Fast Ethernet:
100 Mbit / s (half duplex)
200 Mbit / s (full duplex)
• Gigabit Ethernet:
2000 Mbit / s (full duplex)
Switching Method
Store-and-forward
Table MAC-addresses
8 K
Study of MAC-addresses
Automatic updates
Speed Packet Filtering / Forwarding
• Ethernet: 14,880 packets / second per port
• Fast Ethernet: 148,800 packets / second per port
• Gigabit Ethernet: 1488000 packets / second per port
Buffer RAM
128 KB per unit
Indicators
• Per port: Link / Activity / Speed
• On the device: Power
Interfaces transmission medium
Automatic determination of the polarity of MDI / MDIX on all ports
Fiziksel Özellikler
Measurements
131 x 82 x 22 mm
Weight
330 g
Power supply Adapter
5V/1A
Power consumption
• Input: 0.59 W DC 1.5 W AC
• Max. Input: 3.48 W DC, AC 5.4 W
Temperature
• Operating: 0 º to 40 º C
• Storage: -10 to 70 ° C
Humidity
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
MTBF
522.270 hours
Certifications
• CE class B
• FCC class B
• ICES-003 Class B
• VCCI class B
• C-Tick
• Anatel
• CCC
• cUL
• CB
• LVD
