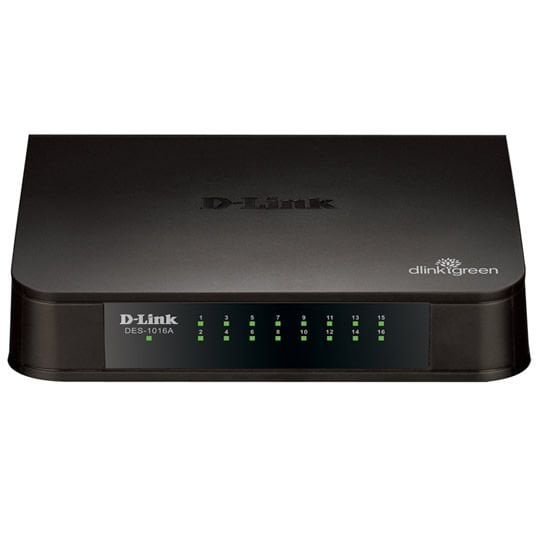

DES-1016A
DES-1016A uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...
Genel Özellikler:
Fiziksel Özellikler
Key Features
• Built-in D-Link Green
• Cost-effective Fast Ethernet for home networks and SOHO
• 16 ports of Fast Ethernet 10/100 Mbit / s
• Switch Fabric 3.2 Gbit / s
• Auto MDI / MDIX on all ports
• Switching Method: Store-and-forward
• Ethernet / Fast Ethernet: Full duplex / half duplex
• IEEE 802.3x Flow Control
• Support for Jumbo-frames up to 9216 bytes
• Supports IEEE 802.1p QoS (4 queues, Strict Mode)
• Compliance with the RoHS Directive
• The Plug-and-play
Standards
• Supports IEEE 802.1p QoS
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• ANSI / IEEE 802.3 NWay auto-negotiation of speed and mode
• Flow Control IEEE 802.3h
Protocol
CSMA / CD
Data rate
Ethernet:
• 10 Mbit / s (half duplex)
• 20 Mbit / s (full duplex)
Fast Ethernet:
• 100 Mbit / s (half duplex)
• 200 Mbit / s (full duplex)
Topology
Star
Network Cables
10BASE-T:
• UTP category 3, 4, 5/5e (100m max.)
• EIA/TIA-586 100-ohm STP (100m max.)
100BASE-TX:
• UTP Cat 5/5e (100m max.)
• EIA/TIA-568 100-ohm STP (100m max.)
Interfaces transmission medium
Automatic detection of MDI / MDIX on all ports
Indicators
• Per port: Link / Activity / Speed
• On the device: Power
Switching Method
Store-and-forward
Table MAC-addresses
8K entries per device
Study of MAC-addresses
Automatic updates
Speed Packet Filtering / Forwarding
• Ethernet: 14,880 packets per second. the port
• Fast Ethernet: 148,800 packets per second. the port
Buffer RAM
256 Kbytes to the device
Fiziksel Özellikler
Power Input
Switching power adapter with a level of performance "V", 5V / 1A
Power consumption
• Power on (standby): 2.36 W at AC, 1.2 W at DC
• Maximum: 2.69 W at AC, 1.6 W at DC
Operating temperature
0 to 40 ˚ C
Storage temperature
-10 To 70 ˚ C
Operating Humidity
From 10% to 90% (non-condensing)
Humidity
From 5% to 90% (non-condensing)
Device Dimensions (W X D X B)
155.7 x 122 x 41 mm
Certifications
• CE Class B
• FCC Class B
• CB
• ROHS
• EuP
