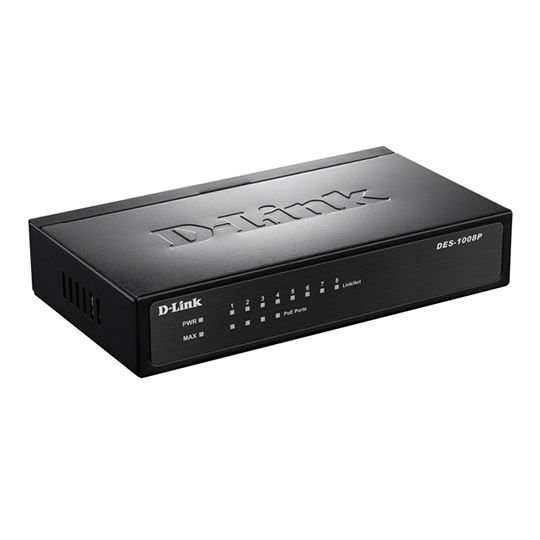

DES-1008P/C1A
DES-1008P/C1A
DES-1008P/C1A uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...
Genel Özellikler:
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
Switching Fabric
• 1.6 Gbps switching fabric
Data Transfer Rates
• Ethernet
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
• Fast Ethernet
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports
Network Cables
• 10BASE-T:
• UTP CAT 3/4/5/5e (100 m max.)
• EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX
• UTP CAT 5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
• Per unit: Power/ PoE Max
• Per port: Activity/ Link and Speed
• Per port: Power / Status
Transmission Method
• Store-and-forward
MAC Address Table
• 2K entries per device
Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
RAM Buffer
• 96 KB per device
Physical
Dimensions
• 5.5” x 3.0” x 1.06” (140 mm x 77 mm x 27 mm)
DC Input
• External 51 V / 1.25 A power adapter
Power Consumption
• 62 Watts maximum
• PoE up to 15.4 Watts per port (ports 1-4 only)
Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 70 °C (14 to 158 °F)
Humidity
• Operating: 5% to 90% RH non-condensing
Certifications
CE / KCC / C-Tick
