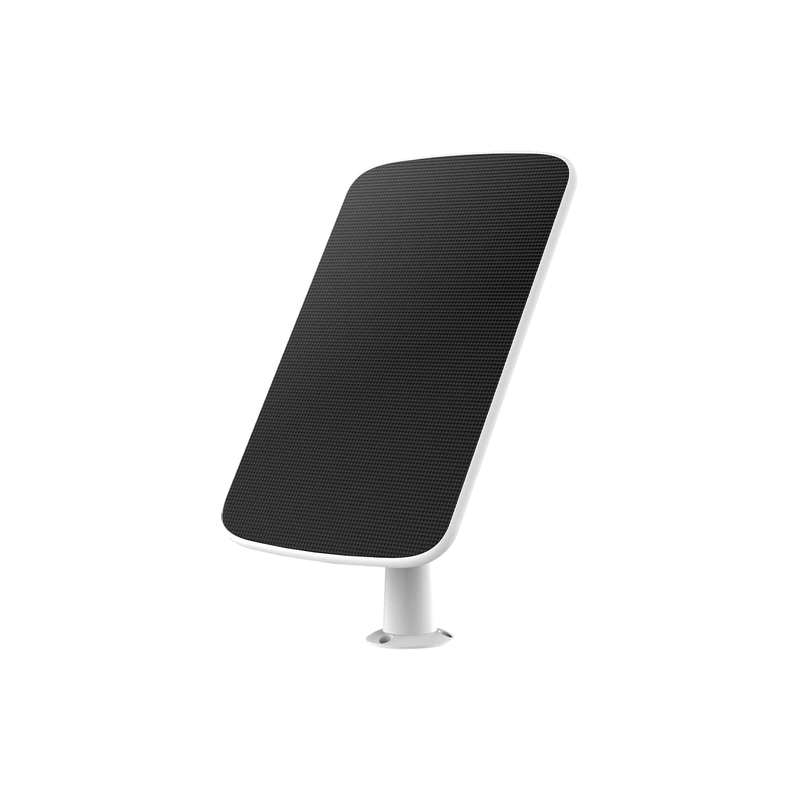

CS-CMT-D CS-BC1C için GÜNEŞ ŞARJ PANELİ
CS-CMT-D CS-BC1C için GÜNEŞ ŞARJ PANELİ
Specifications
| Specifications | |
|---|---|
| Model | CS-CMT-Solar Panel-D |
| Performance Parameter | |
| Open Circuit Voltage | 7.2V±5% |
| Short Circuit Current | 740mA±5% |
| Power Voltage | 6.0V±5% |
| Max. Power Current | 700mA±5% |
| Max. Power | 4.2W |
| Solar Cell Efficiency | 0.216 |
| Operation Temperature | -20℃~60℃ (-4℉~140℉),Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Mechanical Data | |
| Solar Cell Type | Monocrystalline solar cells |
| Product Dimensions | 222.6 × 155.9 × 14.9 mm (8.76 × 6.14 × 0.59 inch) |
| Packaging Dimensions | 230 × 161 × 78 mm (9.06 × 6.34 × 3.07 inch) |
| Weight | With package: 611 g (21.5 oz) |
| Panel body without bracket: 334 g (11.78 oz) | |
| In the box | |
| In the box | - EZVIZ Solar Panel-D |
| - Adjustable Mounting Bracket | |
| - Screw Kit | |
| - Drill Template | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | RoHS \ WEEE \ REACH |
